My 63 Schwinn 97cc motorized bicycle build

[Dowie Soetenga]

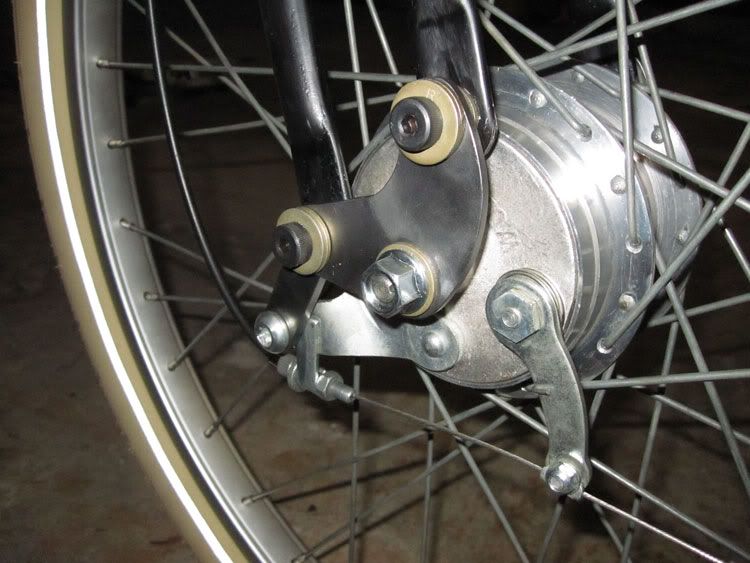

Here are some updated pictures from my build. I finally got the front end all figured out. I'm running a rear atom drum brake up front.

[pepper]

Good looking bike, love the CAD drawing- I see allot of hours spent making it.

[SCHWINNRAY69]

Lookin' good By the way, nice Fatboy

[Dowie Soetenga]

Here are some pictures from last weekend. Test rides went well. Geared just a little too tall. I'm going to tweak the sprocket ratio by one or two teeth. I'm still planning on making a custom fab'd gas tank to match the rendering.

[Dr. Tankenstein]

That...is..NICE! Beautiful work on her..

Cheers!
Dr. T

[D4NK]

Awesome build!!!

Sorry if this is a newbie question but where did you get the motor? Was it a kit?

[Dboy9887]

It looks sweet, but how does it ride? Could you possibly post a video?

[Dowie Soetenga]

Awesome build!!!

Sorry if this is a newbie question but where did you get the motor? Was it a kit?

Thanks for the positive feedback. No kit here. This thing is built from sweat and tears. The motor is a Honda / Lifan 97cc 2.5hp four stroke, flathead, sidevalve. The clutch is a Hillard #35 12T. The motor mounts and related are hand made. The rest of the parts are 90% vintage Schwinn. It rides great. I'm going to swap out a sprocket to give her a little more low end power. Right now the top speed is around 33-35mph. I'm going to scale it back a little. I'll get some video footage on youtube next weekend if I can.

[Dboy9887]

Wow 30mph? thats awesome!!

[masterpoop63]

wheres my welder? i am now officially gona build a 5 horse bike like this once i get my welder working and some steel then ima buy a cranbrook so i dont feel bad about chopping up a jaguar

[bikebum1975]

That is one sweet ride man. Where did you pick the motor up from?

[Dowie Soetenga]

Here are some pictures from last weekend. I think she's all dialed in. I changed the jack shaft output sprocket from 10T to 9T. I've also added a modern rear V brake, and a chain tensioner.

[Dowie Soetenga]

That is one sweet ride man. Where did you pick the motor up from?

The motor is a 2.5HP 97cc four stroke flathead. I bought it on ebay for $90.00. It's a Honda Lifan. I wanted a vintage Briggs, but they were too expensive for my budget.

[chainmaker]

Nice looking bike..did you fab those rear brake bosses, or where did You get them those are sweet.

Cheers

[dash]

man sweet build!! how did you figure out the gear reduction ,a four stoke engine would be cool on my bike not to mention way more reliable and sound better!
