We'll see where this goes... two briggs bikes....NOW DONE!
29 posts • Page 1 of 2 • 1, 2
We'll see where this goes... two briggs bikes....NOW DONE!

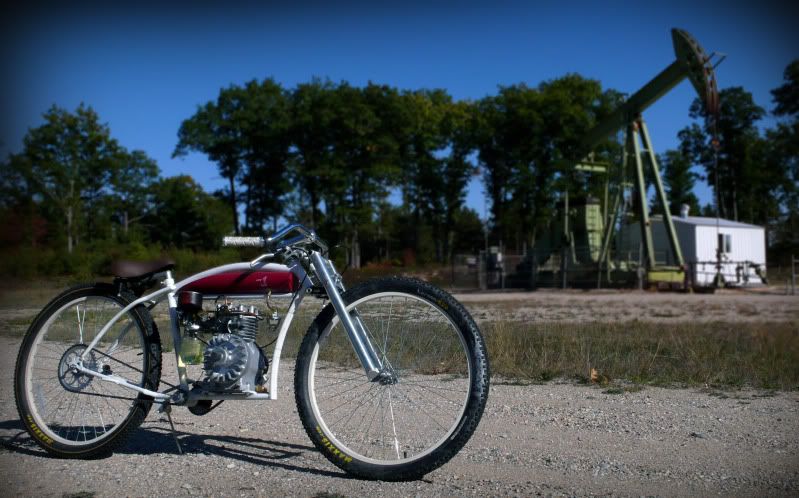

Here she is all finished. Please read on if you want to read the process.

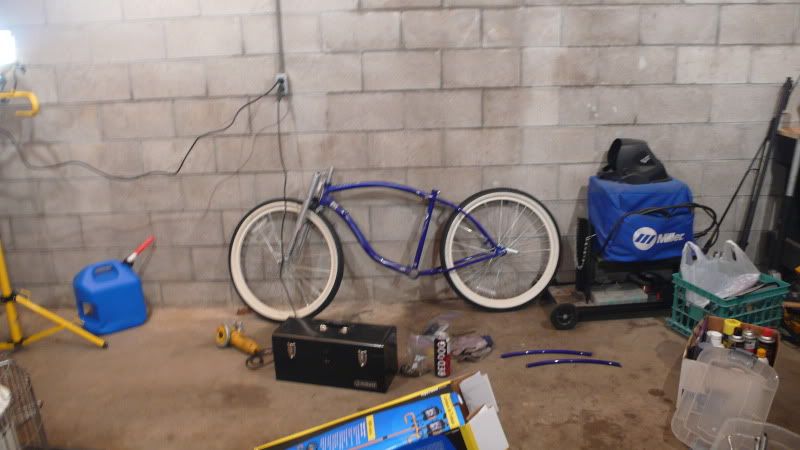

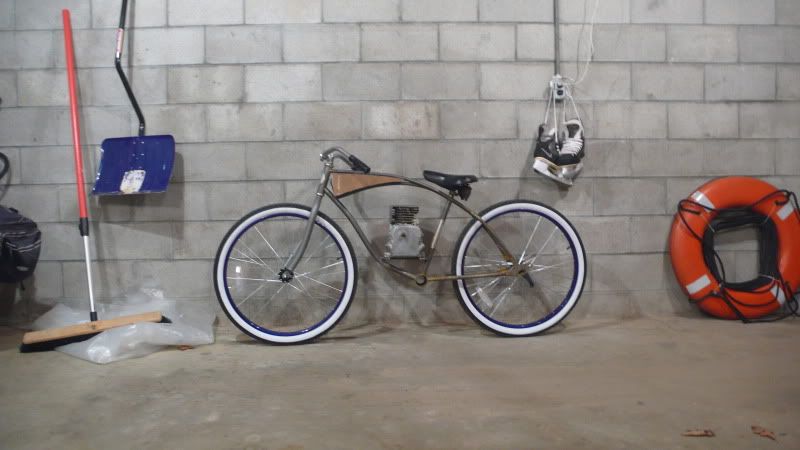

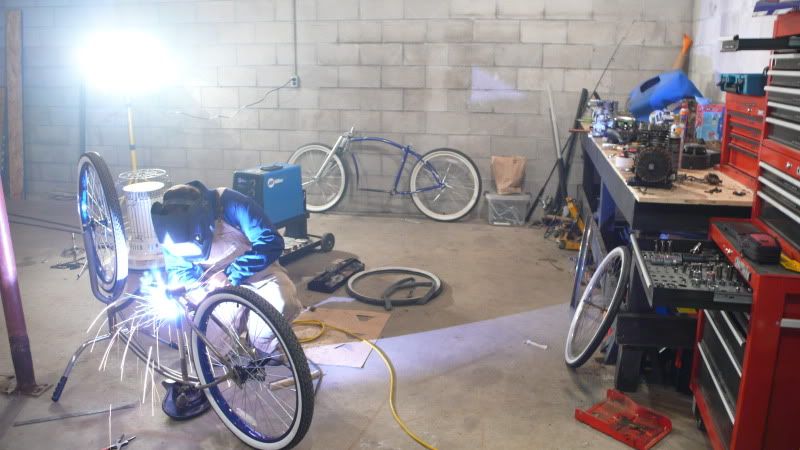

 Started building this awhile ago. I don't really have much of a plan yet, but its starting to come together. Started with a brand new schwinn on sale from target.  Grinder and welder. About to make the first cut. The fork is a girvin from a proflex mtb. The elastomer spring was shat so I just reworked it a bit.  First cuts have been made.    My buddy (I'll call him Mr. French) is also working on his own briggs bike.  Mr. French's bikes is coming along nicely.  Last edited by Cleatus_Fathom on Tue Oct 02, 2012 9:20 pm, edited 2 times in total.
Re: We'll see where this goes... two briggs bikes
This should be in the calendar w/ "BUILT......not bought" on it!
BUILDS IN PROGRESS
Pack Rats Rad Rot - RRBBO #8 entry
Re: We'll see where this goes... two briggs bikes
yeah, along with a picture of the one leg man. who didn't think about cluch,& chain drive line position.
Re: We'll see where this goes... two briggs bikes
I won't tell if you wont.....  BUILDS IN PROGRESS
Pack Rats Rad Rot - RRBBO #8 entry
Re: We'll see where this goes... two briggs bikes

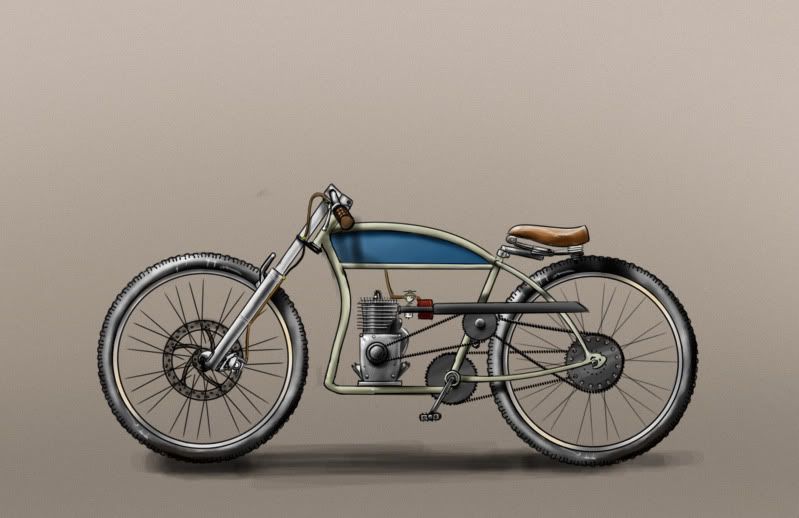

I did have an initial plan but I have since deviated a bunch. Here is one of the first drawings I did of the bike. The current build will have a different drive-line since I wont be putting pedals or a crank on. Instead sealed bearings will be installed in the bottom bracket. This is where the jack shaft will then go to drive the rear wheel from the right side.
Re: We'll see where this goes... two briggs bikes
glad to see that.
with pedals, it could have been tragic. watching this build. how many h.p. ?
Re: We'll see where this goes... two briggs bikes
Lets see. 49.9cc = 5hp
Re: We'll see where this goes... two briggs bikes
LOL! Ya gotta keep it legal!
Re: We'll see where this goes... two briggs bikes
a non pedal power..
trew that "law" out of court.   gotta catch first.DIG-IT.
Re: We'll see where this goes... two briggs bikes
Update:
Got the motor mounts welded on to my bike and the V brake bosses welded to Mr. French's bike. Not really able to do anything else until the parts come in for the jackshaft.
Re: We'll see where this goes... two briggs bikes
Sweet! Lookin pretty good!
Buildin the best,fixin the rest. http://www.facebook.com/3gfabrications http://s1191.photobucket.com/home/Isaiah3g/index New web page coming soon!-ish.
My rides~ Roach. The 30 hp turbo,methanol fed rat rod bike from the sewer! 98 Lincoln Mark VIII Low-n-Slow
Re: We'll see where this goes... two briggs bikes
Finally found some time to work on the bike a little more. I got the engine mounts completely mounted now. Also got the jackshaft and sprockets installed. All I have to do now is decide on how I want to do the tank. Not sure if i want just add some small cylinder for a tank and leave the frame as is or add a cross bar and make a more traditional tank. What do you all think?
 Cross bar...yes or no?
Re: We'll see where this goes... two briggs bikes
Decided to add the crossbar. Ended up getting the rear sprocket done too. Lastly decided on a paint scheme, brown primer frame, white seat/grips, polished aluminum motor/forks.
    How to make a coaster brake hub into a fixie...weld.
Re: We'll see where this goes... two briggs bikes
Maybe check out how Goldy did his pedals and jack shaft combo. Pedels and shaft all in one.......Curt
http://motorbicycling.com/showthread.php?t=28747
